Dual-mode Bluetooth RF IP

Dual-mode Bluetooth RF IP is a 2.4 GHz ISM band RF transceiver IP designed for Bluetooth dual-mode applications. It is compliant with the Bluetooth specification (Bluetooth 5.3), and supports BR, EDR, and BLE. This IP is implemented using the FD-SOI 22nm process, rendering good performance and low power dissipation. It exposes a simple parallel digital interface to baseband modem for easy integration. A slave Serial Peripheral Interface (SPI) is used for connection to the baseband or external MCU.

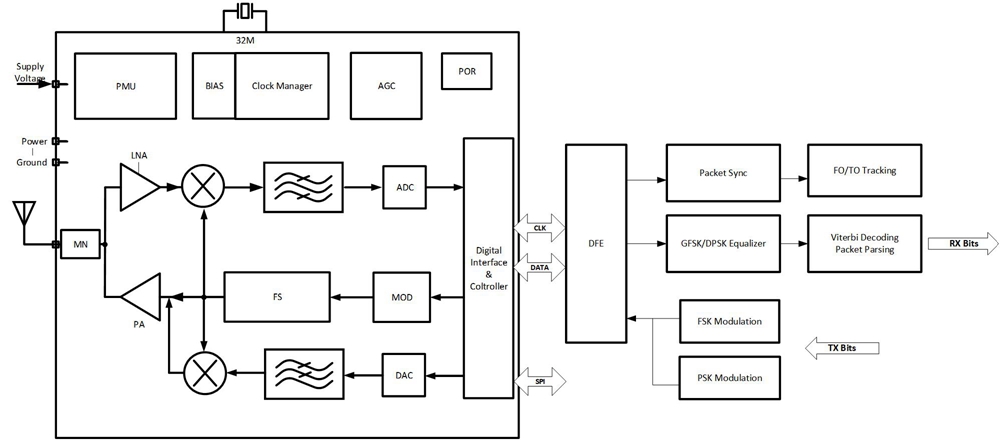

Dual-mode Bluetooth RF IP.jpg

Description

Process Technology: GLOBALFOUNDRIES 22nmFDX
Supply voltage: 1.5 ~1.8v
Operating temperature: -40°C to 85°C
Support 6 modes including BT BR/EDR2M/EDR3M and BLE 1M/2M, Coded PHY S2/S8

Compatible with Bluetooth2.1-TS RF spec and BLE5-TS RFPHY Specification
TX output power up to 10dBm in BLE modes
Integrate 32MHz X0 and PLL for sampling clock
Sophisticated detector integrated for excellent Rx performance
