Fully compatible with:

-  USB 3.0 SuperSpeed: Universal Serial Bus 3.0 Specification, Revision 1.0

-  PCI Express: PCI Express Base Specification, Revision 2.0

Supports all USB 3.0 and PCIe 2.0 power management modes

Supports PCIe L1 PM substates (L1.1 and L1.2) with CLKREQ#

Spread spectrum clock (SSC) and data scrambling to minimize EMI

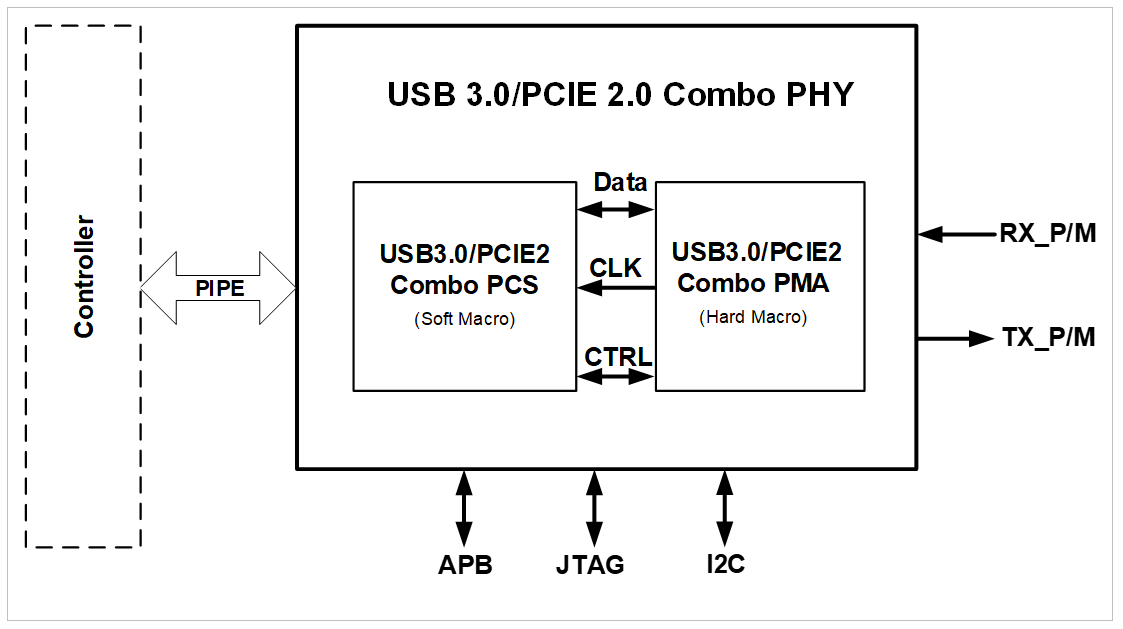

Supports 16-bit 250 MHz and 32-bit 125 MHz PIPE interfaces for USB 3.0/PCIe Gen2

Supports 16-bit 125 MHz and 32-bit 62.5 MHz PIPE interfaces for PCIe Gen1

Supports a wide range of reference clocks: 25/50/60/100 MHz

Multiple loopback and compliance test modes

Built-in BIST pattern generator and checker with programmable modes for stand-alone tests

On-chip Eye Opening Monitor (EOM) to measure the eye diagram at the RX side

-3.5 dB/-6 dB de-emphasis at the TX side and programmable CTLE equalization at the RX side

Supports programmable transmit swing:

-  8b /10b encoding and decoding implemented in hardware

-  Supports LFPS generation and detection in USB 3.0 mode and beacon in PCIe mode

IEEE standards 1149.1 and 1149.6 (JTAG) boundary scan for internal visibility and control

APB and I2C interfaces to access the internal registers for different applications
