USB 2.0 PHY

Home IP Portfolio Interface IP USB 2.0 PHY

USB2.0 PHY

The USB 2.0 PHY is a high-speed USB peripheral transceiver IP that implements the Intel® UTMI standard. It provides a High/Full/Low-Speed USB analog front-end with a built-in 8-bit/16-bit parallel interface. Optimized for portable applications, the PHY features low power dissipation in active and/or standby state, and a small area for low cost. The USB 2.0 PHY can be implemented as a discrete or integrated physical layer interface for any OTG device that complies with the On-The-Go and Embedded Host Supplement to the USB 2.0 Specification, or any host or peripheral that complies with the USB 2.0 Specification. It also supports battery charging function.

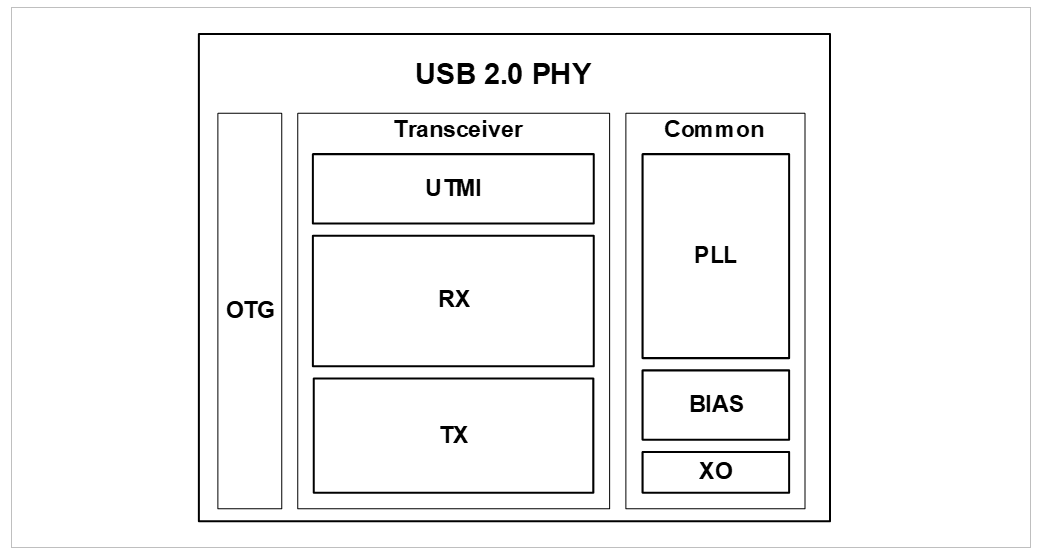

USB2.0 PHY.png

Features

Compliant with the USB Specification Compliant with the UTMI Specification Revision 1.05 Compliant with the UTMI+ Specification Revision 1.0 Level 3 Compliant with the On-The-Go (OTG) Specification Revision 2.0 Compliant with the Battery Charging Specification Revision 1.1 Supports 480 Mbit/s “High Speed”, 12 Mbit/s “Full Speed”, and 1.5 Mbit/s “Low Speed”” Supports 60 MHz/8-bit interface and 30 MHz/16-bit interface		Supports either crystal reference clock source or on-chip reference clock source Supports multiple reference clock frequencies: 12 MHz, 19.2 MHz, 20 MHz, 24 MHz, 40 MHz, etc. Integrates 45 Ω ± 10% termination, 1.5 kΩ pull-up and 15 kΩ pull-down resistor Clock and data recovery from serial stream on the USB bus Supports detection of USB reset, suspension, resume, and remote-wake-up features Supports the test modes defined in the USB 2.0 Specification Provides Built-in-Self-Test (BIST) mode
