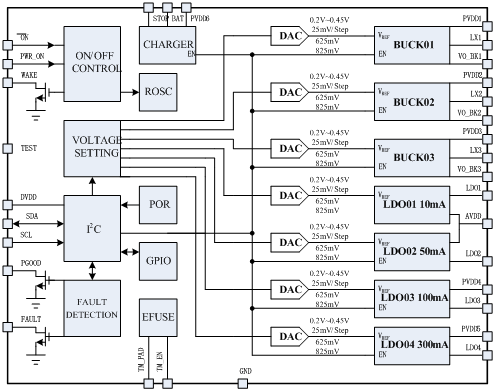

VeriSilicon’s Power Management Platform offers Ultra Low Power LDOs, DCDCs, Battery Charger, System ON/OFF Control, Fault detection and so on. Each LDO, DCDC output voltage and power on sequence can be configurable. The whole PMU solution are silicon verified on 22nm, 40nm, 55nm, 90nm, 110nm process nodes.
Ultra low power DCDC
PWM mode and PSM mode control
2A maximum output current
Dynamic output voltage scaling
Spread-spectrum frequency modulation
Ultra low quiescent current
OTP/OCP/OVP/UVP/PGOOD
Ultra low power LDO
500mA maximum output current
Ultra low quiescent current
low dropout voltage
Current limit protection
OTP/OVP/UVP/PGOOD
Linear Battery Charger
CC/CV charge
Trickle charge when battery voltage is low
Adjustable charging current with temperature compensation
Highly accurate end-of-charge voltage
Load short protection
