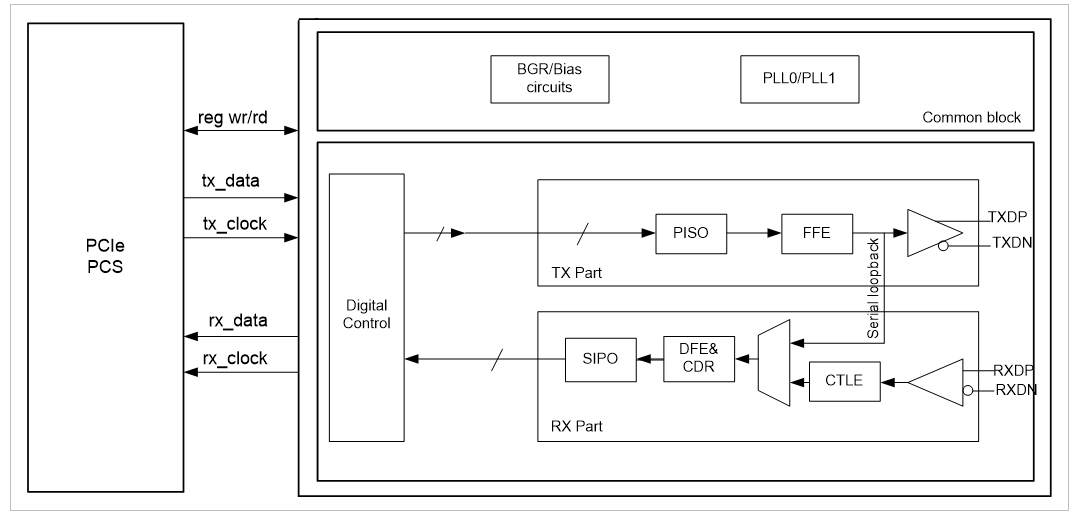

PCIe 4.0 PHY is compatible with the PCIe 4.0 (16 Gbps) standard and backward compatible with PCIe 3.0 (8 Gbps), PCIe 2.1 (5 Gbps), and PCIe 1.1 (2.5 Gbps) protocols. The PHY has 1-lane, 2-lane, and 4-lane versions for flexible applications. The PHY includes a hard macro (PMA SerDes) and a soft RTL (PCS). The PHY supports common reference clocks and independent clock source configurations. The PHY integrates a programmable 3-tap TX FFE, along with RX CTLE, VGAs, and a 5-tap DFE to ensure robust signal integrity across challenging PCB channel environments. Multiple debugging methods such as embedded eye monitor, BIST test, and boundary scan help bug locating.
|
|
