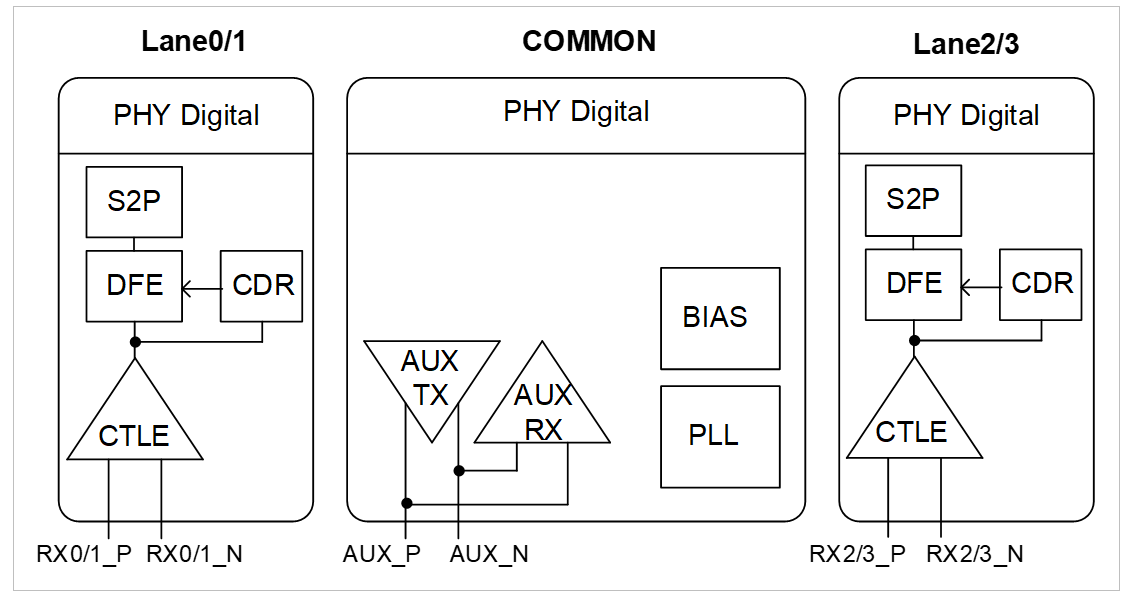

The DP/eDP Combo RX PHY IP is compliant to the DisplayPort v1.4a and embedded DisplayPort v1.4a. It consists of configurable numbers of (1, 2, or 4) main link channels and one AUX channel. It supports the main link speed rates from RBR(1.62Gbps) to HBR3(8.1Gbps) and 1Mbps Manchester II coding for the AUX channel.
It consolidates internal and external connection methods to reduce device complexity, supports necessary features for key cross-industry applications, and offers scalable performance, enabling next-generation displays with Larger color depths, refresh rates, and resolutions.
|
|
