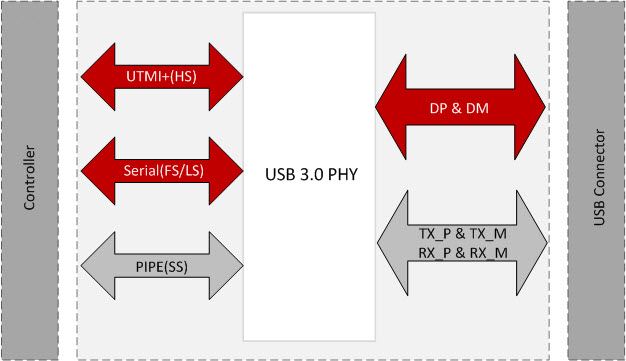

The USB3.0 PHY IP is designed according to the USB 3.0, USB2.0 Specification. It supports the USB3.0 5Gbps Super-Speed mode and backward compatibles with the USB2.0 480Mbps High-Speed, 12Mbps Full-Speed, and 1.5Mbps Low-Speed modes The USB 3.0 PHY interface complies with PHY Interface for PCI Express and USB3.0 Architectures specification (PIPE 3.0) and the USB2.0 PHY interface complies with the UTMI v1.05 specification.

Implemented on the GF22FDX and Samsung 28nm FDSOI process, the USB3.0 PHY IP provides a cost-effective, low-power solution for demanding applications.

Features

Silicon proven in 22, 28, Global Foundries and Samsung Spread Spectrum clock (SSC) and data scrambling to minimize EMI Supports 16-bit 250-MHz , and 32-bit 125M PIPE interface Multiple loopback and compliance test modes On chip Eye Opening Monitor (EOM) to measure the eye diagram at the receiver side PIPE 3-compliant Super-Speed USB 3.0 Transceiver interface		5-Gbps Super-Speed data transmission rate through 3-m USB3.0 cable Supports Super-Speed power management modes: U0, U1, U2 and U3 Built-in BIST pattern generator and checker with programmable modes for stand-alone tests -3.5dB de-emphasis at the TX side and programmable CTLE equalization at RX side IEEE standards 1149.1 and 1149.6(JTAG) boundary scan for internal visibility and control
