Physical Layer of LVDS Receiver

The LVDS Receiver IP is designed to support single link transmission between ost hand flat panel display with up to SXGA+ resolution. The LVDS Receiver IP converts the LVDS data stream back into 35 bits of CMOS data with a variety of LCD panel controllers.

The receiver LVDS clock operates at a rate between 25 MHz and 150 MHz. At an input clock rate of 150 MHz, each LVDS input line operates at a bit rate of 1.05 Gbps.

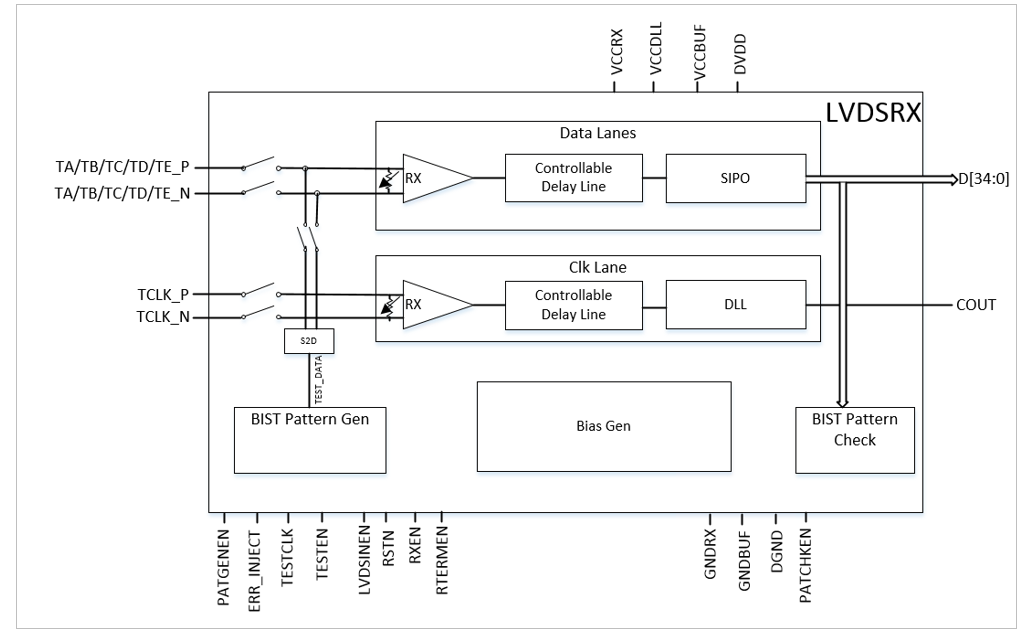

LVDS RX PHY.png

Features

Functions compatible with the National DS90CF386
Converts a 5-pair LVDS data stream into 35 bits of parallel CMOS data
Wide dot clock range: 25 MHz to 150 MHz, suited for VGA, SVGA, XGA, SXGA, SXGA+, and UXGA
Supports up to 1.05 Gbps data rate for UXGA
On-chip DLL with no external component

Low-power CMOS design
Power-down control function
Compatible with TIA/EIA-644 LVDS standards
Full industrial operating junction temperature rangeL -40°C ~ +125 °C
On-chip 100Ω termination resistor that can be disabled
Negative clock edge for data output
