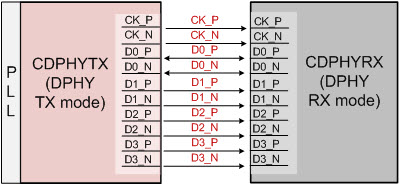

The C/D Combo PHY TX IP can be flexibly configured as DPHY or CPHY, which offers a compatibility with the DPHY only design, and a more cost-effective and power-efficiency design with CPHY. With CPHY V1.0 the maximum channel rate achieved would be 3Gsps which would result in an effective data rate of 6.85Gbps.CPHY reuses the similar Low power signaling same as the DPHY. CPHY is designed such a way that it can co-exist sharing the same lines as DPHY. CPHY/DPHY combo IPs will be compatible to operate on the same channels used by DPHY, which offer a much wider area of application and flexibility. It can work with both old DPHY systems and is compatible with new CPHY.
|
|
|
