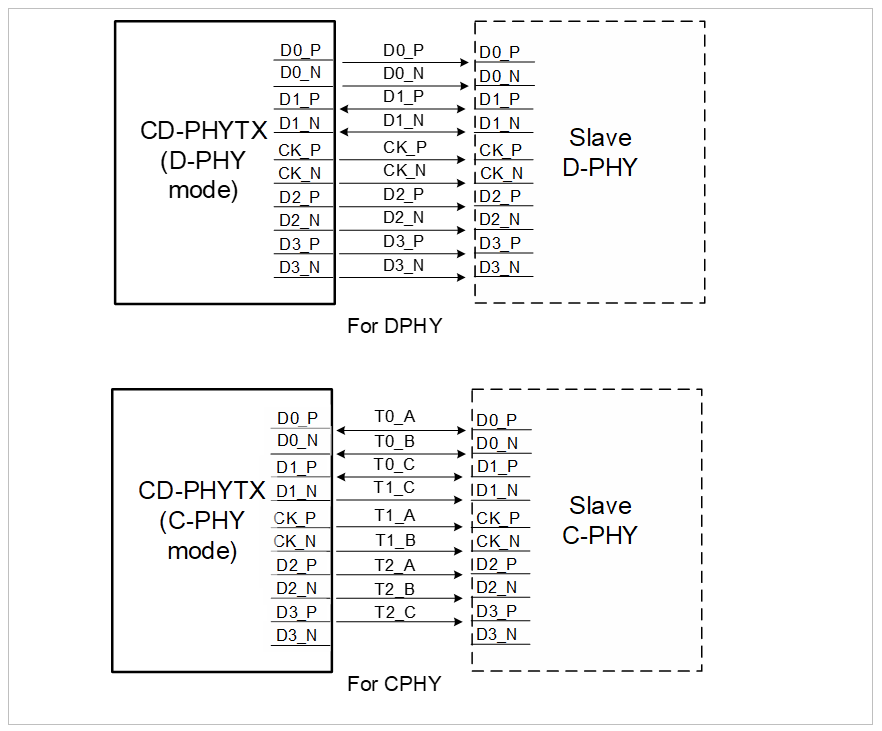

This IP is a C/D Combo PHY TX IP which can be flexibly configured as Master D-PHY or C-PHY. It can support camera interface CSI-2 v1.3 and display interface DSI-2 v1.0 applications in both D-PHY and C-PHY modes. It can also support DSI v1.3 applications in D-PHY mode. It can work with both old D-PHY and new C-PHY systems.
The C-PHY is based on 3-Phase symbol encoding technology delivering 2.28 bits per symbol over three-wire trios, and operates with a symbol rate range of 80 to 4500 Msps per trio, which is the equivalent of about 182.8 to 10285 Mbps per trio.
Each lane of the D-PHY supports 80 to 4500 Mbps in High-Speed mode and 10 Mbps in Low-Power escape mode.
|
|
|
