1.25 Gbps-16 Gbps HSS for Supporting Multiple Protocols

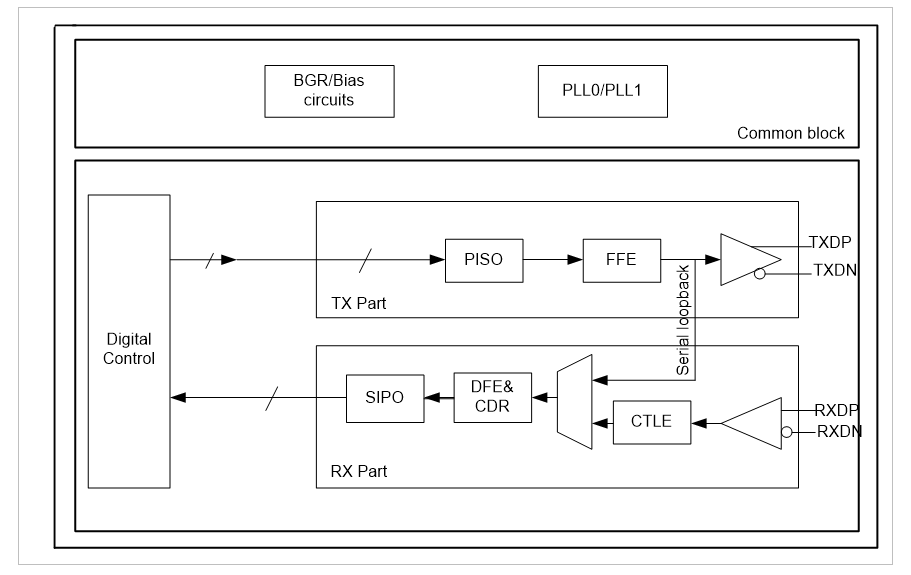

The 12.5 Gbps to 16 Gbps high-speed SerDes (HSS) is compatible with multiple industry protocols. The PHY has 1-lane, 2-lane, and 4-lane versions for flexible applications. Additionally, HSS supports wide range datarates and multiple parallel data width. HSS also includes 3-tap programmable TX FFE, CTLE, and VGAs to maintain signal integrity across complex PCB environments. Multiple debug methods such as embedded eye monitor, BIST test, and boundary scan are provided to facilitate bug locating.


Features

Operates over a wide range of data rates, including 1.25 Gbps, 2.5 Gbps, 3.125 Gbps, 5 Gbps, 6.25 Gbps, 8 Gbps, 10 Gbps, 12.5 Gbps, and 16 Gbps
Supports multiple protocols, each with its own dedicated PCS
Supports independent control of power state and data rate per lane
Provides comprehensive power-down control to optimize power modes
Supports configurable TX pre-emphasis and post-emphasis control

Supports integrated spread-spectrum generation with spread depth of up to 5000 ppm
Offers Built-in Self-Test (BIST) features for production, enabling at-speed testing on any digital tester
Includes embedded PRBS generator and PRBS checker to facilitate debugging
Supports wire-bond and flip-chip packaging technologies
