High-efficiency, AI-based super resolution IP

VeriSilicon's AI-SR series IPs offer super resolution solutions for enhancing video quality and pixel resolution, primarily used for post-processing or display applications. Currently consisting of AISR1000 and AISR2000 IPs, this series enables generation or transfer of low-resolution sources for bandwidth reduction and performance improvement, while ensuring high-quality, high-resolution displays at the edge.

In addition to high performance, low power consumption, and small silicon footprint, AI-SR series delivers robust pixel processing features, including detail recovery, crispy edges, and thinning lines with jaggy-free results, resembling the orginal high-resolution image. With these features, AI-SR series is well suited for a wide range of applications, including consumer electronics, gaming, data centers, surveillance, and healthcare.

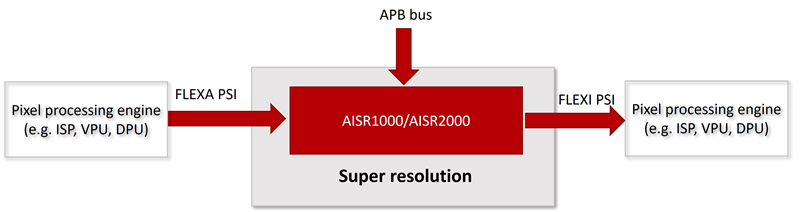

The AI-SR series operates in streaming mode, making it easy to integrate into pixel processing pipelines. It come with a lightweight, easy-to-use software stack, and is compatible with Android, RTOS, and any distribution of Linux systems.


Performance
AISR1000: up to 4Kx2K@60fps
AISR2000: up to 4Kx2K@144fps
Interfaces
FLEXA PSI for data input and output
APB interface for configuration
Input and Output Formats
YUV444, 10-bit data for each component
Pixel Processing Features
High quality Super Resolution solution with support for any scaling ratio at [1x, 5x]
Recover more fine details and texture naturally
Crispy edge with jaggy removed
Clear, sharp and thinning like original resolution
Robustness to meet different sources with diverse quality
Software Support
OS support: Linux, Android, RTOS
Light weight software driver
