LVDS RX PHY

Home IP Portfolio Analog and Mixed Signal IP LVDS RX PHY

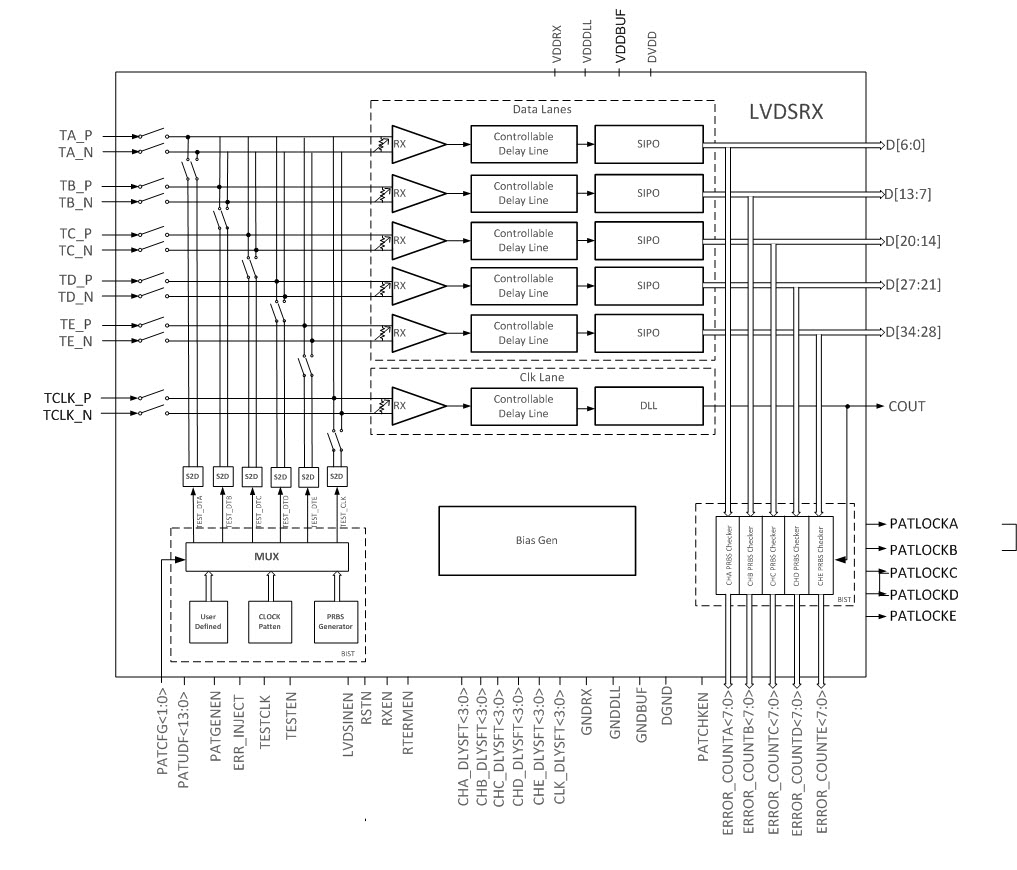

The LVDS Receiver IP is designed to support Single Link transmission between Host and Flat Panel Display with up to SXGA+ resolution. The LVDS Receiver IP converts the LVDS data stream back into 35 bits of CMOS data with a variety of LCD panel controllers.

The receiver LVDS clock operates at rates from 25 MHz to 150 MHz, At an incoming clock rate of 150MHz, each LVDS input line is running at a bit rate of 1.05Gbps.

Features

Converts 5-pair LVDS data stream into parallel 35 bits of CMOS data Compatible with the TIA/EIA-644 LVDS standards Supports up to 1.05Gbps data rate for UXGA On-chip DLL requires no external component Power-down control function Negative clock edge for data output Core area: 0.4134mm^2		Wide dot clock range: 25 ~ 150MHz suited for VGA, SVGA, XGA, SXGA, SXGA+ and UXGA Function compatible with the National DS90CF386 Silicon Proven in 22,28,55,65,130n,180n from SMIC, Global Foundries and Samsung On chip 100Ω termination resistor. Can be disable. Power consumption: - 71.8mW@1.05Gbps, prbs7 pattern
