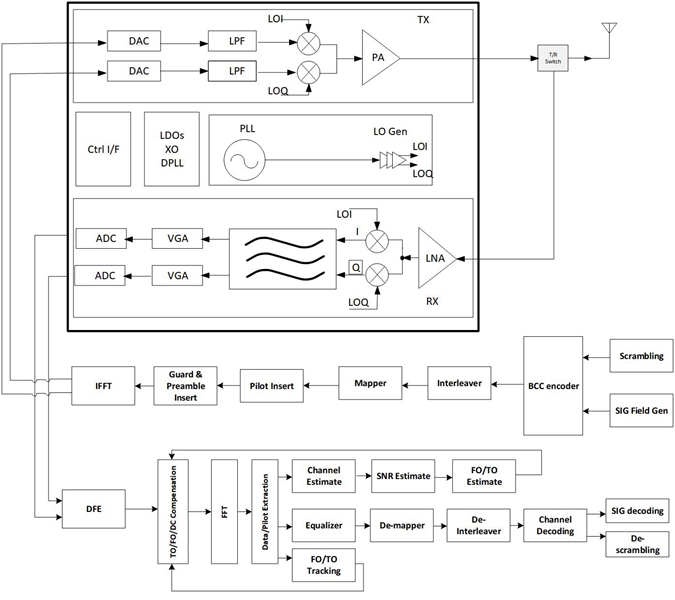

VeriSilicon 802.11ah IP is a complete radio transceiver working on 863M~928MHz ISM frequency band. The functionality complies with 802.11ah PHY specification, supporting long range communication with various modulation modes MCSs. With an integrated PA, the TX output power can be up to 20dBm. This IP is implemented on FD-SOI 22nm process with excellent performance and optimal power dissipation. Along with baseband IP, it can be easily integrated in an SoC system to enable wireless connectivity function in IoT application.


Description

Process Technology: GLOBALFOUNDRIES 22nmFDX
Operation voltage: core 0.8v, I/O 1.8v
Operation Band: 863MHz ~ 928MHz
Power and clock blocks are integrated in IP
Excellent sensitivity supporting up to 300m coverage
Support 1MHz/2MHz bandwidth, OFDM BPSK, QPSK, 16QAM, 64QAM

Operating temperature: -40°C to 85°C
Max TX output power +20dBm
Baseband signal processing integrated for synchronization and OFDM symbol detection
Auto-correcting frequency offset up to 20ppm
SPI-slave interface for register control
